This user guide has been developed to walk you through the key tools and functions of the UN Biodiversity Lab. You can access a downloadable version of this guide here: English | French | Spanish | Portuguese | Russian
If you have any further questions, please visit our support page or contact us at email@example.com.
Before you begin exploring the data, register for the UN Biodiversity Lab.
- Click the ‘data’ page of the UN Biodiversity Lab website, then select the launch button to access the data app.
- Once this has loaded, select the account icon in the top right-hand corner and choose ‘sign up’. Enter your email, name, country, and institution (optional), and set your password to sign up.
- You will receive an email within a few minutes. Follow the instructions in this email to then follow email to verify your account.
- Once your account is verified, you can log in using your email address and password each time you access the platform.
- You can log-out at any time by clicking on your user icon and selecting Sign Out.
Once registered on UNBL, you will be able to manage your account, including editing your user name, email, password, country, and institution. You will also be able to view and edit the UNBL workspaces you belong to.
To manage your account:
- Click on the account icon with your initials on the top right, then click on profile.
- Click on the edit icon to edit your username, email, country, and institution.
- To reset your password, click on SEND RESET EMAIL, then follow the instructions in the email.
- To leave any of the UNBL workspaces you belong to, click on edit, then on leave workspace. Save your changes.
- If this account is no longer in use, you can click on DELETE YOUR ACCOUNT and the bottom of this page. After deleting the account, you will need to sign up again to gain registered user privileges on UNBL.
- After saving your changes, click on RETURN TO MAP VIEW.
Navigating between the two pages is simple:
- To return to the UN Biodiversity Lab website from the data app, click the map view option and choose the home option on the top right of the panel.
- To navigate to the data app from the UN Biodiversity Lab website, click on Data.
The UN Biodiversity Lab is currently available in English, French, Spanish, Portuguese, and Russian. The default language is English.
To change the language, click on the account icon on the right corner of the map and click again to select the language you prefer from the dropdown menu.
You can change your language on either the UN Biodiversity Lab website or the data app.
There are several features that can assist you to navigate the map screen. These include:
- Move map: Use your mouse to drag the portion of the map you would like to view into the middle of the screen.
- Zoom in/out: Click on the +/- icons at the bottom right of the map.
- Center place: Click on the center place button above +/-. This will re-center the map over the selected place.
- Hide left menu bar: Click on the arrow at the top of the left menu to collapse the layer panel for a larger map view. Click again to expand the panel.
There are several options for you to customize the base map. These include:
- Labels: The labels show the name of the places, including countries, states, cities, and representative landmarks. Click the toggle on to activate labels, and click off to hide.
- Roads: Click on the toggle to show roads; toggle off to hide roads.
- Map background: We offer grayscale and satellite options for the map background. To toggle between these options, click the small window at the left bottom right of the screen.
UNBL can help you to navigate to a specific area of interest and access datasets and dynamic metrics for this area. On our public platform, areas of interest include countries, jurisdictions, and select transboundary areas. To search for an area of interest, you can either:
- Click on the PLACES icon, type the name of the country or jurisdiction you want to view into the search box, and select the desired result in the search result list.
- Click on the PLACES icon, click to expand the filters box, and select your filter of interest.You then can select the desired place from the search result list.
UNBL offers at-a-glance metrics based on the best available UN-certified global spatial datasets. These metrics can be used to report on the state of nature and human development in your country. Available metrics include:
- Tree cover loss (2001-2018)
- Biodiversity intactness index (2015)
- Enhanced vegetation index (2000-2019): the EVI can quantify vegetation greenness and indirectly reflect the productivity and quality of the vegetation, there are applications of this data in grassland monitoring, predicting primary production and biomass, degradation assessment, etc..
- Global Land cover (2015)
- Monthly fire activity(2018)
- Protected areas (2019)
- Terrestrial carbon density (2010)
- Terrestrial human footprint (1993 & 2009)

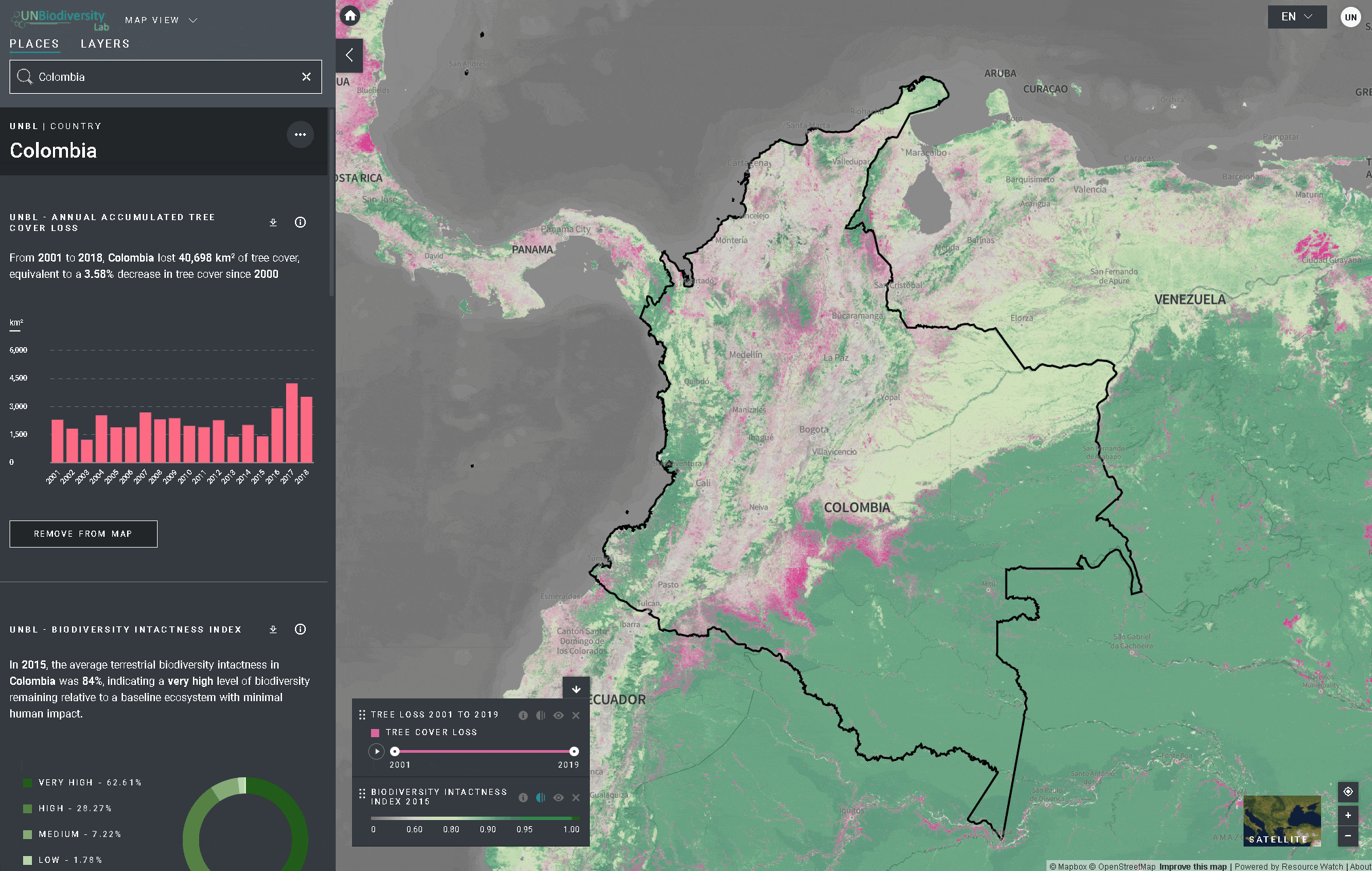

To view the metrics on UNBL:
- Select an area of interest.
- Review the metrics in the left panel.
- Click on the SHOW ON MAP icon if you want to view this layer on the map. Click on the REMOVE FROM MAP icon or the remove layer icon on the legend to clear the screen.
- Click on the icon to view layer info, the info pages provide a brief description of the data, related paper to read and source links.
- To download summary data for the metric in .csv or .json format, click on the arrow icon . You can also download the data from source links on the layers’ info pages.
- Select the layer and load it to the map.
- On the left corner of the map, there will be a legend showing the name and symbology of the data layers on the map. Click on the i icon to view the layer information. The information provides a description of the layer, source organization, citations, and links to download the data.
When selecting multiple layers, you can customize the map by adjusting their overlay order and opacity.
- To change the overlay order, click on the icon on the left of the layer name in the legend and move the icon up or down, as preferred. The top layer on the legend will be the top layer on the map.
- To change the opacity, click on the icon. Reducing the opacity increases the transparency of the layer. For example, to visualize both tree cover loss and protected areas, you can position the tree cover loss layer above the protected areas layer, and adjust the opacity of protected areas to 60%. This creates a map that shows tree cover loss within the protected areas, as well as the overall loss across the country.
- To temporarily hide a layer on the map, click on the icon. To make it visible again, click on the icon.
UNBL provides you with access to layers that show change over time. Some time series layers are visualized over multiple years with animation, others can be visualized by specific year via the dropdown menu, and some are a combination of both with the ability to visualize animations of particular years that can be chosen from the dropdown menu.
To visualize time series layers:
- Review our data list to confirm which layers are available as time series.
- Select the layer of interest.
- Customize based on the options available:
- Animation only: Click on the play icon to the left to see the animation of changes over this time period.
- Specific year only: Select the time (year, month, or date) you want to show on the map by clicking on the timeline bar.
- Customized animation: Select the time range (year, month, or date) you want to show on the map by clicking on the timeline bar. Click on the play icon to the left to see the animation of changes over this time period.
1. Navigate to your area of interest, if preferred. You can also stay on the global view.
2. Click on the LAYERS icon.
3. To search for a layer, you can either:
- Type the name of the layer you want to view into the search box, and select the desired result in the layer list.
- Click to expand the filters box, and select your filter of interest. You then can select the desired place from the search result list.
4. Click the toggle to the left of the layer name to load this layer to the map.
5. Click the toggle again or click the X icon on the layer info to remove this layer.
Sharing data layers is easy. To do so:
- Activate the layer(s) of interest on your map viewer.
- Copy the URL displayed in your browser.
- Share! Any data layers on our public platform will be accessible by anyone, regardless of whether they are a registered user.
Registered users on UNBL are able to clip raster layers to an area of interest and download them for use in an offline GIS software. This function allows users to access the underlying data while avoiding the bandwidth and storage required to download and work with a global dataset.
To clip a layer to your area of interest and download:
- Click on the PLACES icon and select your places of interest.
- Click on the … icon on the right of the country’s name, and click on Clip and Export Layers.
- Type the name or select the data you want to download. If the data contains layers of multiple years, select the year you want to download.
- Click download.
- The selected data source will be clipped to the bounding box around the country.
- There is a small buffer added to the bounding box, which will slightly enlarge the area of the clipped raster. This helps to ensure that any incongruities between the national boundary used in UNBL and the official national boundary file you may wish to use do not result in loss of data. This assumes that differences are potentially small. If this is not the case, please contact us at firstname.lastname@example.org for assistance.
- Note: this is the raw data and will not include styling information.
- Access the downloaded .zip compressed file in your downloads folder once the download is complete.
- The downloaded data can be opened in any GIS software for further analysis.
- Select the layer of interest.
- Click on the layer info icon.
- Click on the link under LEARN MORE to download the data from its original source.
- If you encounter any issues in accessing the data, please contact email@example.com for further support.
- Customize the view of the layers you selected, as desired.
- Use the screenshot function on your computer to capture the map.
- For inclusion in formal reports or publications, please ensure you meet mapping standards:
- Maps should be clear and concise.
- Important text on maps should be clear and legible (e.g., cities, place names, legend items, etc.).
- The map should include basic mapping elements, including: a legend of relevant data layers and scale bar.
- The map must provide correct attribution(s) and citation(s) for the data source(s) used in its creation, either on the map itself or in a caption describing the map, e.g.:
Example (if within the map)
Sources: Sanderman, et al., 2018; UNEP-WCMC and IUCN, 2021.
Example (if in a caption):
Figure 2 shows the estimated soil organic carbon present in mangroves (from Sanderman, et al., 2018) within protected areas in Vietnam (UNEP-WCMC and IUCN, 2021).
Also be sure to include full citations for datasets used in the references section of the document, e.g.:
Sanderman, J. et al. (2018) ‘A global map of mangrove forest soil carbon at 30 m spatial resolution’, Environmental Research Letters, 13(5), p. 055002. doi: 10.1088/1748-9326/aabe1c.
UNEP-WCMC and IUCN (2021), Protected Planet: The World Database on Protected Areas (WDPA) [On-line], 02/2021, Cambridge, UK: UNEP-WCMC and IUCN Available at: www.protectedplanet.net.
- Include information on the map (or in the citation describing the map) on: who created the map; the date the map was produced on UN Biodiversity Lab; and a note indicating that the map was created using UN Biodiversity Lab.
Created by James Bond using UN Biodiversity Lab (www.unbiodiversitylab.org) on 14 February 2021.
- Finally, ensure that you also include a citation for the map in the references section of the document. We recommend this format:
Author. “Map title” [format]. Scale. (Date of Production). Map Generated on the UN Biodiversity Lab [web]. Version 2. UNDP and UNEP, 2021.
Bond, James. “Mangrove Forest Soil Organic Carbon within Vietnam’s Protected Areas” [map]. Scale not given. (14 Feb 2021). Map Generated on the UN Biodiversity Lab (www.unbiodiversitylab.org) [web]. Version 2. UNDP and UNEP, 2021.
We welcome suggestions on data that would enrich UNBL! If your data addresses biodiversity, conservation, or sustainable development at local, national, or international levels, please fill out this form.
Our team will review suggestions as they are received. UNDP, UN Environment Programme, and UN Environment Programme World Conservation Monitoring Centre (UNEP-WCMC) have adopted criteria to assist in identifying and curating the best available data layers on these themes in order to enable more streamlined and standardised analyses and reporting. These selection criteria will place data into one of three tiers, and consider aspects like data relevance, open-licensing and availability, transparency, and geographic coverage. We welcome feedback on these criteria, available here, to help inform their development and the accompanying methodology.
To upload data for your institution’s use in a UNBL workspace, please see the next question on requesting a UNBL workspace.
We recognize that national data is often higher quality and better suited to countries’ needs for decision-making, monitoring, and reporting. UNBL offers free workspaces to stakeholders who need a secure area to access and use spatial data. Our workspaces can serve as a common data repository, offer a collaborative work environment, and enable you to calculate dynamic indicators for a subnational or transboundary area of interest. These password-protected spaces enable you to control access to your data, and ensure data security through storage on UN servers.
We encourage users to explore how UNBL workspaces can help you to build communities of practice to transform data to action.
To request a secure UNBL workspace please contact firstname.lastname@example.org or click on the UNBL workspaces tab on our support page and fill out the form.
You can access our user guide on UNBL workspaces here.
For further questions, please don’t hesitate to reach out to us at email@example.com.
